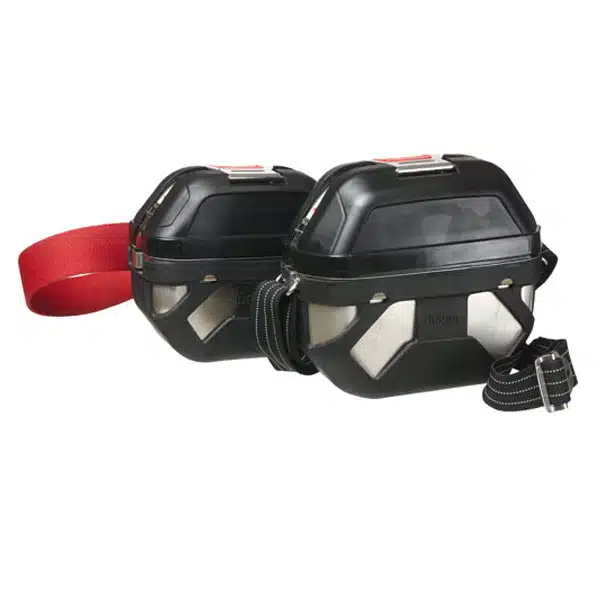

Drager Oxy K Breathing Apparatus Side View Image

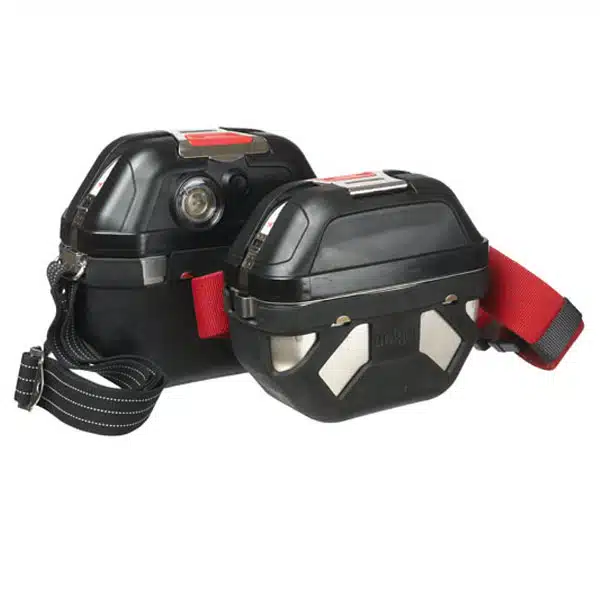

Main Image For The Dräger Oxy 3000 Self-Rescuer Series

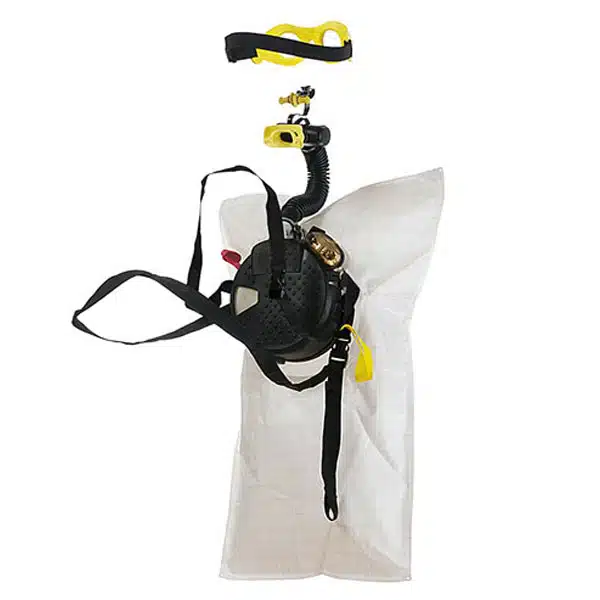

Drager Oxy 3000 (Unboxed)

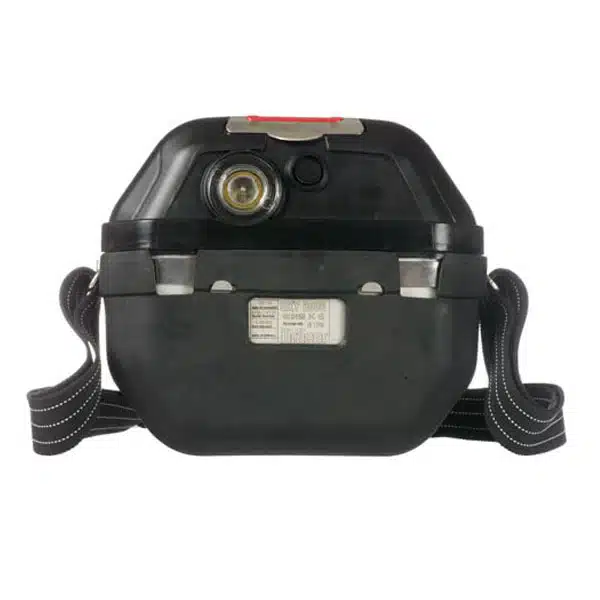

Drager Oxy K Breathing Apparatus Front View Image

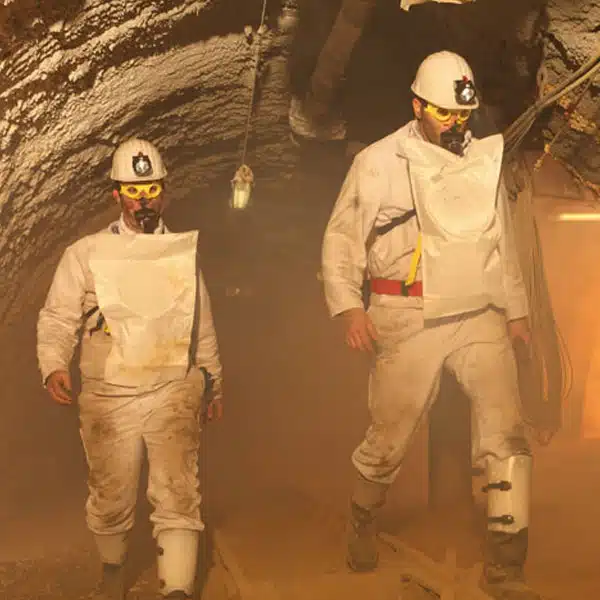

Site Workers Using Drager Oxy 3000 Breathing Apparatus
SKU: 63068XX

Dräger Oxy 6000 Emergency Escape Breathing Apparatus

Call 02920 759 683 For Best Price

Datasheet
Enquire About This Product
Categories: , , Tag:

Description

Dräger Oxy 6000 Emergency Escape Breathing Apparatus

A robust and reliable safety solution, the Dräger Oxy 6000 Self-Rescuer ensures that it’s user has extra breathing protection when working in environments that are either toxic or oxygen deficient.

Providing up to 30 mins to breathable air, this model uses a innovative Safety Eye, which communicates to the user that it’s operational and ready to use through its status window. Robust in its design, the Oxy it equipped to withstand the harshest conditions.

Key Features

  • Robust & durable.
  • User friendly status window.
  • Wide selection of variations.
  • Suitable for temperature classes T1-T4.
  • 10 year lifetime (without maintenance).

Click here to find out what other breathing apparatus & accessories we have to offer; also check out our handy blog article on The Different Types Of Breathing Apparatus.

Video

Downloads

Oxy Datasheet.pdf
Oxy Breathing Cycle.pdf
Oxy Dent Indicator.pdf

Specs

Temperature -30 °C to +50 °C (-22 to 122 °F) for storage and transport
-30 °C to +70 °C (-22 to 158 °F)
for a maximum of 24 h during transport
(not when the device is in use)
-5 °C to +70 °C (23 to 158 °F) during use
Inhalation temperature Maximum +50 °C (122 °F) in accordance with DIN EN 13794
Breathing bag volume > 8 liters
Service life 10 years @ 5 days/week and 8hrs/shift
Dräger Oxy 3000 MK II Dräger Oxy 6000 MK II
Duration 30 min (35 L/min breathing minute volume) 60 min (35 L/min breathing minute volume)
Inhalation/exhalation
resistance		 resistance
+10 hPa or -10 hPa
(maximum exhalation resistance)
Σ 16 hPa (at the end of the running time)		 +7.5 hPa or -7.5 hPa
(maximum exhalation resistance)
Σ 13 hPa (at the end of the running time)
Weight without options 2.6 kg/ 91.7 oz without options 3.4 kg/ 119.9 oz.
with support ring (hip) 2.8 kg/ 98.8 oz. with support ring 3.8 kg/ 134.1 oz
with support ring &
abrasion protection		 3.0 kg/ 105,8 oz with support ring, belt &
abrasion protection		 4.0 kg/ 141.1 oz.
Dimensions without options 219 x 190 x 109 mm /
8.62 x 7.48 x 4.29 in		 without options 246 x 213 x 125 mm /
9.69 x 8.39 x 4.92 in
with support ring (hip) 225 x 190 x 122 mm /
8.86 x 7.48 x 4.80 in		 with support ring
(shoulder) & belt		 265 x 213 x 125 mm /
10.43 x 8.39 x 4.92 in
with support ring &
abrasion protection		 230 x 194 x 122 mm /
9.06 x 7.64 x 4.80 in		 with support ring, belt &
abrasion protection		 265 x 217 x 125 mm /
10.43 x 8.54 x 4.92 in
in use 170 x 200 x 80 mm /
6.69 x 7.87 x 3.15 in		 in use 190 x 240 x 100 mm /
7.48 x 9.45 x 3.94 in
Approvals DIN EN 13794
89/686/EWG
AS/NZS 1716:2003 (MDG 3609:2010)		 DIN EN 13794
89/686/EWG
AS/NZS 1716:2003 (MDG 3609:2010)
SANS 10338:2009
