Description

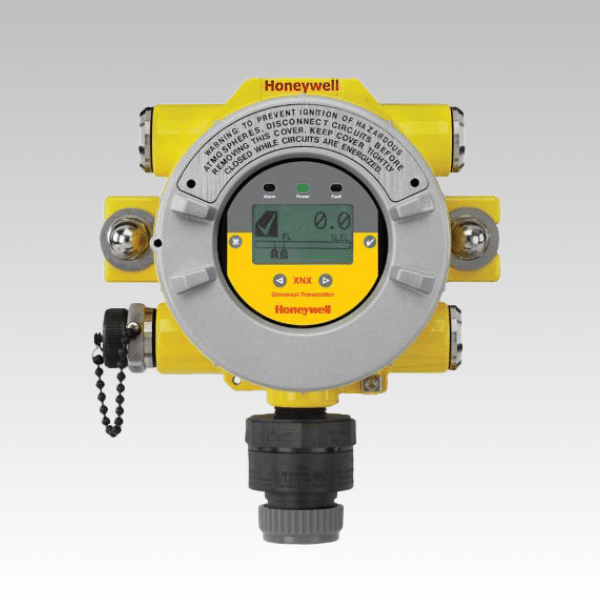

The Honeywell XNX fixed gas detector supports the widest range of gas sensors on a common platform and offers a modular choice of inputs and outputs (saving both time and money).
Material
LM25 Aluminium, painted (SS316 painted as an option)
Cable Entries
5 cable entries – (2 right, 2 left, 1 bottom) in ¾” NPT, or M25
Termination
Cage Clamp Blocks with retaining screws, 0.5 to 2.5mm (12-28 AWG)
Mounting
Built-in cast tabs provide secure mounting to any surface or channel. It can be mounted to a 2-to-6-inch pipe or ceiling with an optional mounting kit.
UI
Custom Backlit LCD. 2.5” as standard with High-Res DOT-Matrix Display. Discrete Alarm and Status. 4-button UI with magnetic wand access.
Signal 0-22mA analogue current loop output with HART (version 6) as standard. Optional relay or Modbus.
Environmental
Temp: -40°C to +65°C / -40°F to +150°F (sensor dependent)
Humidity: 20 to 90% RH non-condensing
IP Rating: NEMA 4X IP66
The Honeywell XNX is simple to use
XNX’s advantage is that it is a simple-to-use, low-maintenance platform that works with other safety equipment on a digital bus system, including Honeywell’s own Searchline Excel, Optima or other gas detectors, industry standard PLCs and third-party gas controllers.
The XNX supports Electrochemical, Infrared and Catalytic Bead gas monitors and uses standard 4-20mA wiring and HART: options include Modbus, Fieldbus (pending) up to three relays and a local Hart adapter for config and diagnostics using existing HART handheld devices.
With 200+ unique ways to set up, XNX satisfies Class 1/Class 2, explosion-proof in up/downstream oil, chemical, wastewater, and other industries.
The XNX fixed gas detector has a tough casing that comes in stainless steel or aluminium, with a marine-grade coating. Five threaded ports, to choose from in metric or NPT versions, and rugged mounting options provide well-rounded install flexibility.
Other units can be attached locally to the XNX itself or remotely with the correct parts.
For more details about the Honeywell XNX fixed gas detector, call our team at 02920 759 683.
